EU/UK
No Harness.
Traditional regulators route a multi-wire harness up to 30 feet back to a central box. More wire runs. More connection points. More installation time. More places for things to go wrong. Zeus Omega was designed from the ground up to change that.
Zeus Omega integrates with your existing externally regulated alternator. No modifications. No compatibility questions. No sourcing new hardware.
P-type or N-type alternator? Select it in the app. Whatever alternator you are running, Zeus Omega connects to it.
Zeus Omega separates control from drive. One module mounts anywhere near the battery. The other mounts directly at the alternator. One cable connects them. No traditional harness.

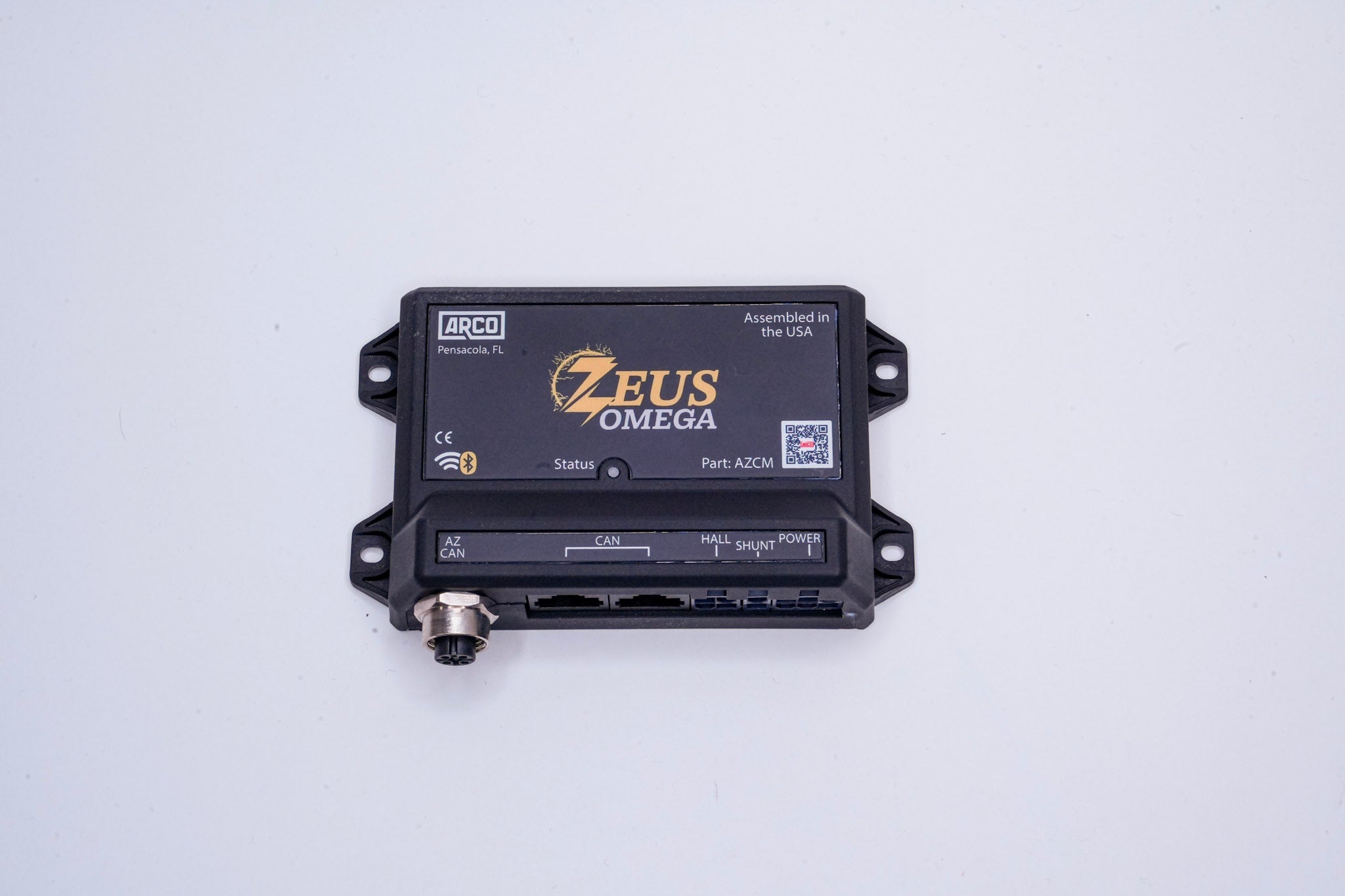

The brain. Mounts at the battery. Handles WiFi, Bluetooth, app control, and system intelligence.
- Waterproof Rating IP20
- Heat Tolerance 80°C (176°F)
- Dimensions 100 x 75 x 25mm
- Weight 3 oz (85 g)
- WiFi + Bluetooth Native

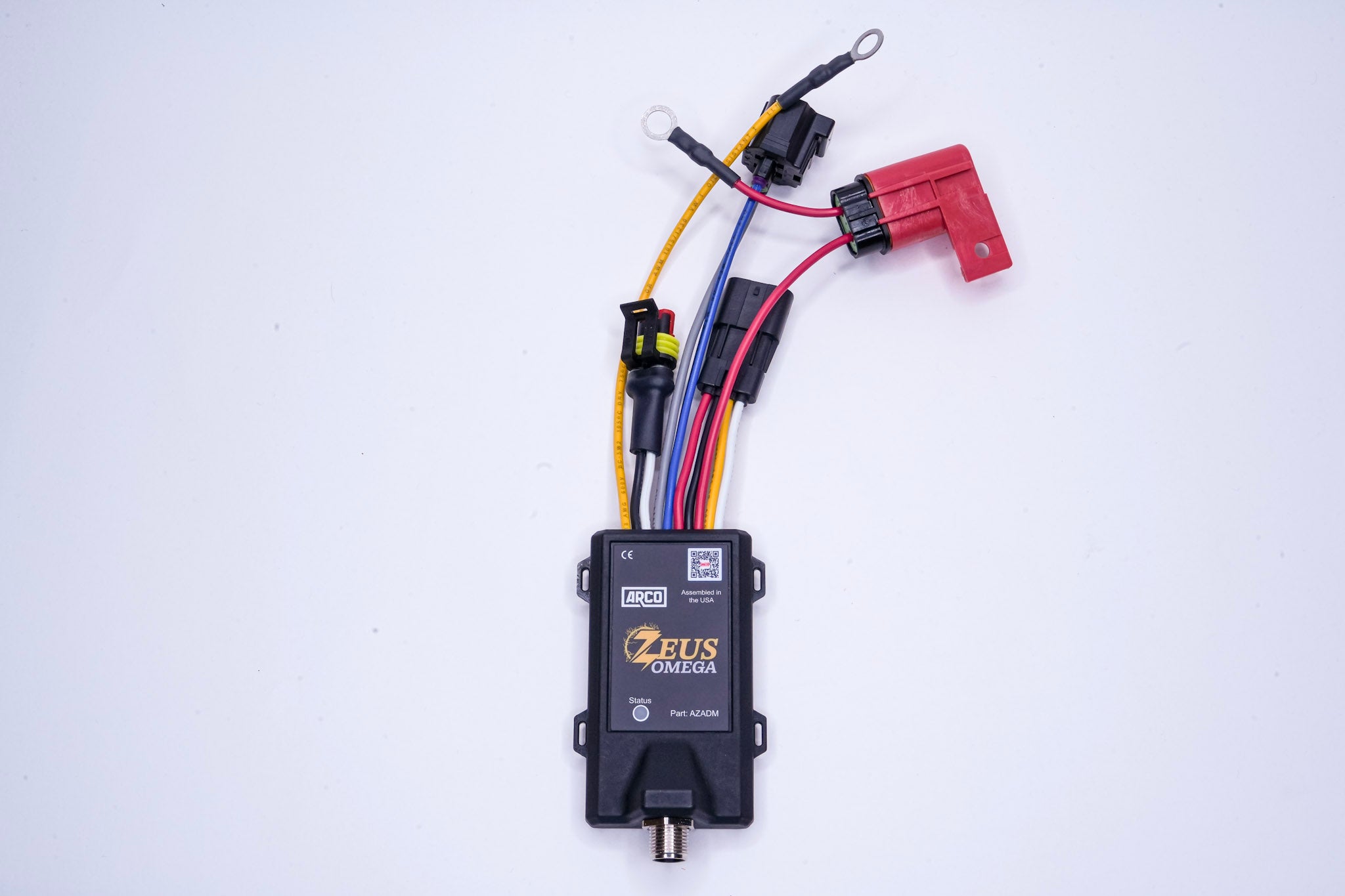

The muscle. Mounts directly at the alternator. Epoxy-potted, IP68 rated, built for 100°C engine bay heat.
- Waterproof Rating IP68 Epoxy Potted
- Heat Tolerance 100°C (212°F)
- Dimensions 50 x 100 x 25mm
- Weight 5 oz (142 g)
- Mounting At the alternator
Included · Expandable
connection
1 controller · 1 cable per alternator · Scale without limits
No Harness*
One cable. Connect at the source. No multi-wire runs back to a central box.
WiFi
Access your system remotely with AZ Cloud. The only alternator control system with native WiFi connectivity.
Emergency Charge Mode
Ability to safely charge if the Control Module is not functional. Your system keeps running.
Modular Connect*
Connect multiple externally regulated alternators through one controller via additional ADMs.
Engine Run Detect*
Zeus Omega knows when the engine is running without a dedicated ignition wire.
Device Settings History
Records lifetime configuration changes for full visibility into how your system has been set up.

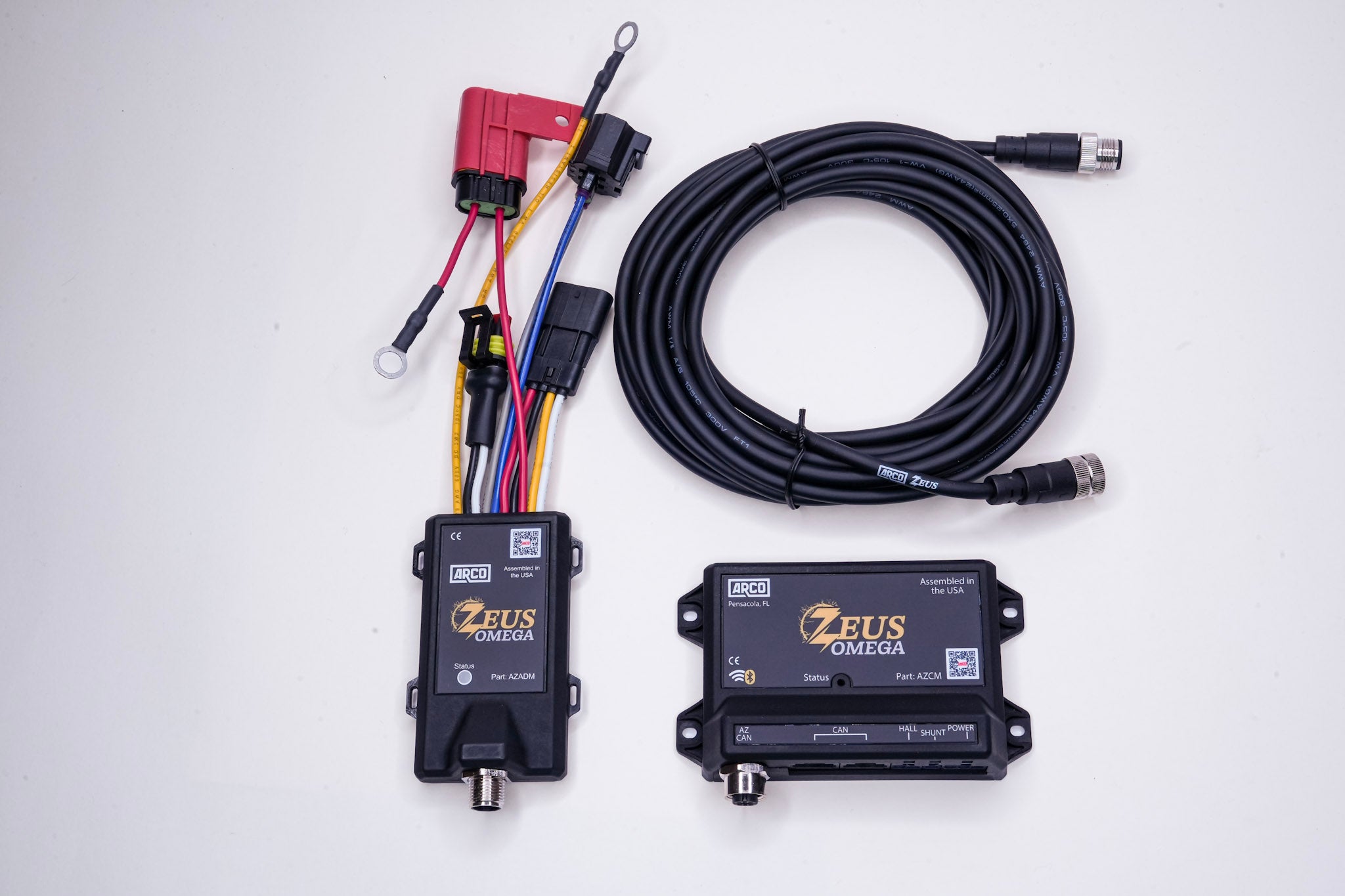

Zeus Omega ships as a complete, ready-to-install system. Every component is pre-terminated, pre-matched, and rated for the environment it lives in.
- Zeus Omega Control ModuleThe brain. Pre-terminated. Plug in and run.
- Zeus Omega Alternator Drive ModuleThe muscle. Lives at the alternator.
- 5M / 16ft AZ CAN CableThe one cable. Controller to ADM. No long runs.
- Short Power ConnectionPowers the Control Module. No long cable runs.
- 2x IP67 Fuses + HoldersWaterproof circuit protection. Included.
- Temperature SensorMonitors heat at the source. Protects your system.
The Zeus Omega app introduces a new look and a more intuitive interface, expanding system configuration, monitoring, and protection capabilities. Greater control over complex charging systems, with built-in protection against incorrect configurations and unsafe operating conditions.
Multi-Voltage
12V / 24V / 36V / 48V system voltage with native WiFi and Bluetooth.
IP68 ADM
Epoxy potted, rated to 100°C — built for the harshest part of the engine bay.
App Controlled
iOS / Android with CarPlay & Android Auto. Customizable parameter fields.
Compatibility
Victron DVCC, NMEA2000, RV-C, CZone, and Smart BMS battery integrations.
P-Type & N-Type
Compatible with both alternator types, selectable directly in the app.
2-Year Warranty
Control Module and ADM covered for two years. Part No: AZOMEGA.

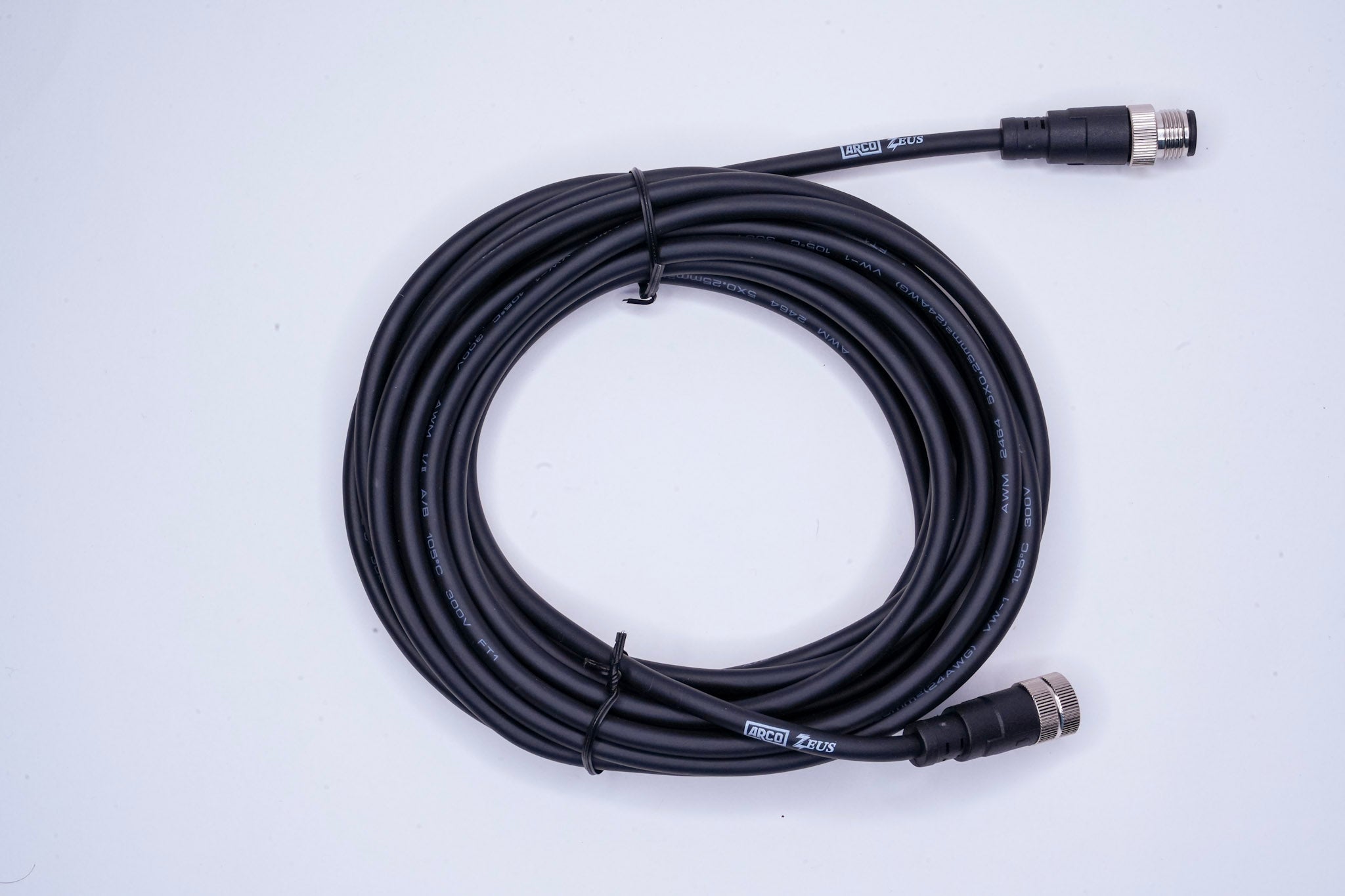

The AZ CAN Cable uses N2K-style DeviceNet connectors — the same standard used globally across marine electronics. The 5M / 16ft cable is included in every kit. Need to extend? Add any standard NMEA 2000 cable in 16ft increments. No proprietary extensions. No special adapters.
Connector Type
N2K DeviceNet (M12)
Included Length
5M / 16ft
Extendable With
Any NMEA 2000 Cable
Extension Part No.

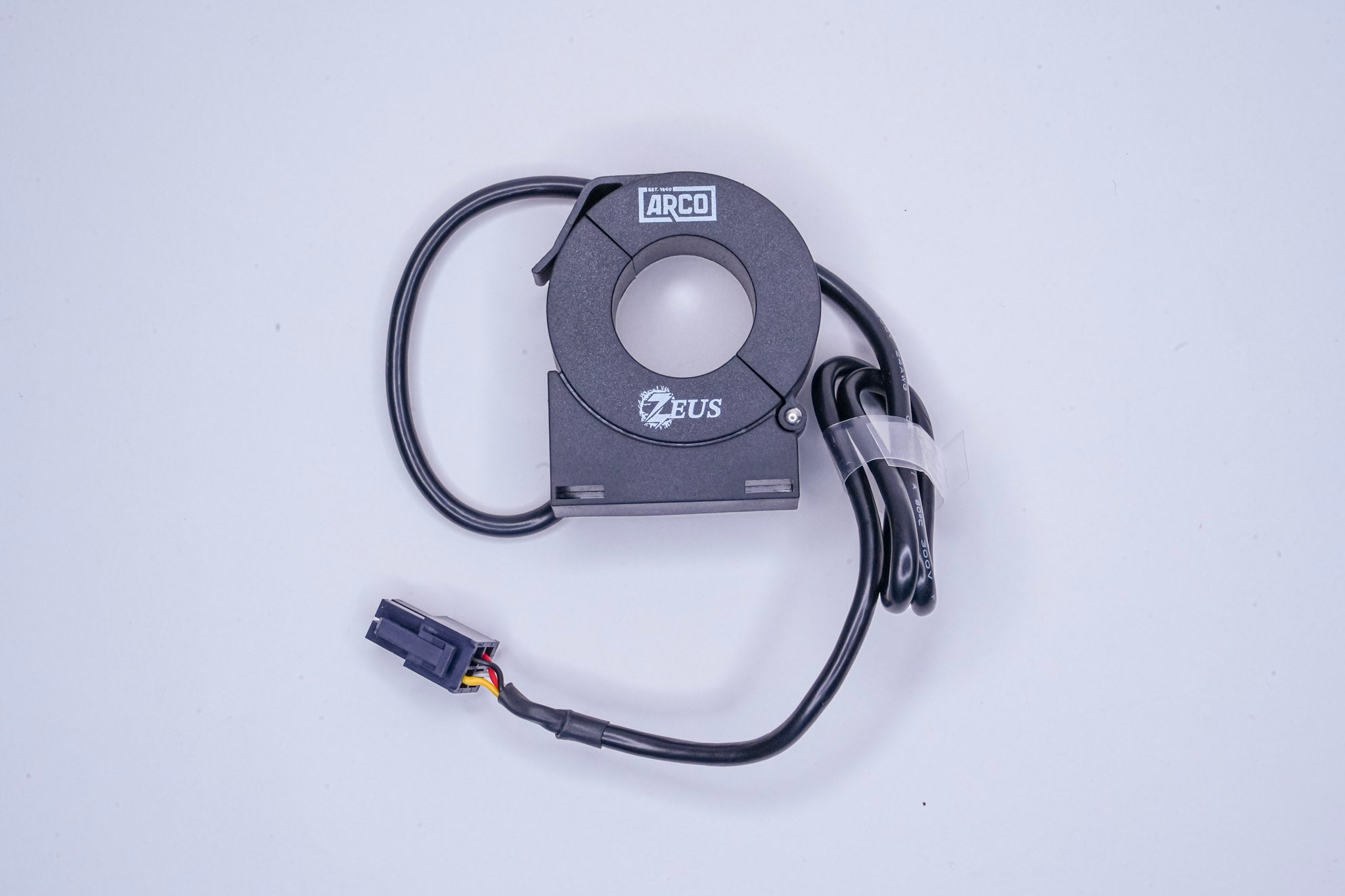

Zeus Omega supports ARCO's advanced Hall Effect Sensors — direct current sensing that delivers accurate measurement without the installation challenges of traditional analog shunts. Faster commissioning, more accurate state-of-charge monitoring, and enhanced system diagnostics.
Direct battery or alternator current sensing at the Control Module. No shunt required.
Part No: AZHSCM Shop AZHSCM →

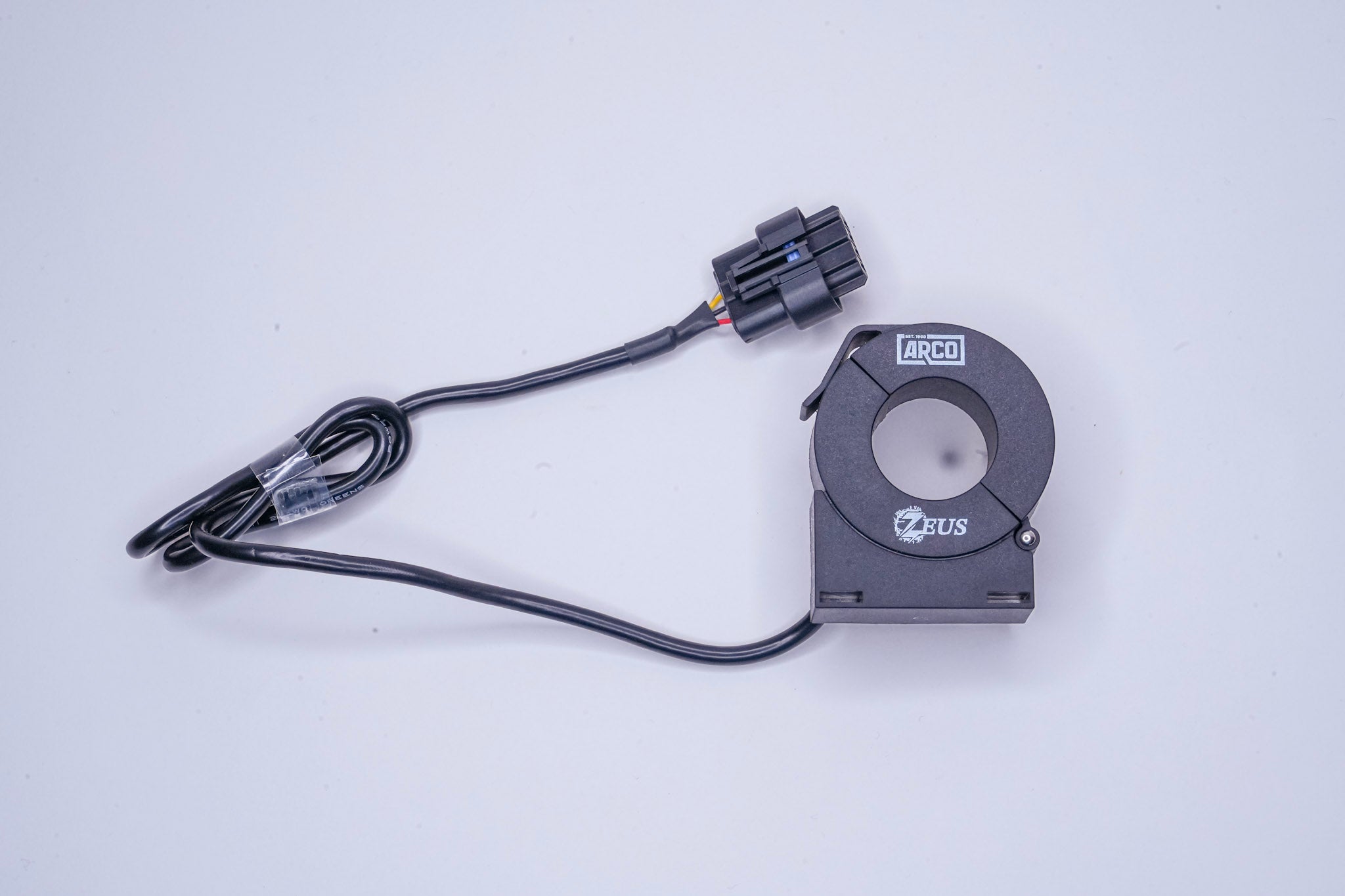

Direct alternator current sensing at the ADM. Accurate, real-time current data feeding directly into Zeus Omega's intelligent regulation and diagnostics.
Part No: AZHSADM Shop AZHSADM →Every Zeus Omega PCBA is manufactured at ARCO Marine's facility in Pensacola, Florida — using in-house SMT equipment and firmware developed entirely by our engineering team. No outsourced boards. No overseas firmware.
Contact the ARCO Marine team with questions about Zeus Omega or to place an order.
* Patent Pending
Manufactured by ARCO Marine, Inc. · 3921 W. Navy Blvd. Pensacola, FL 32507 · arcomarine.com
