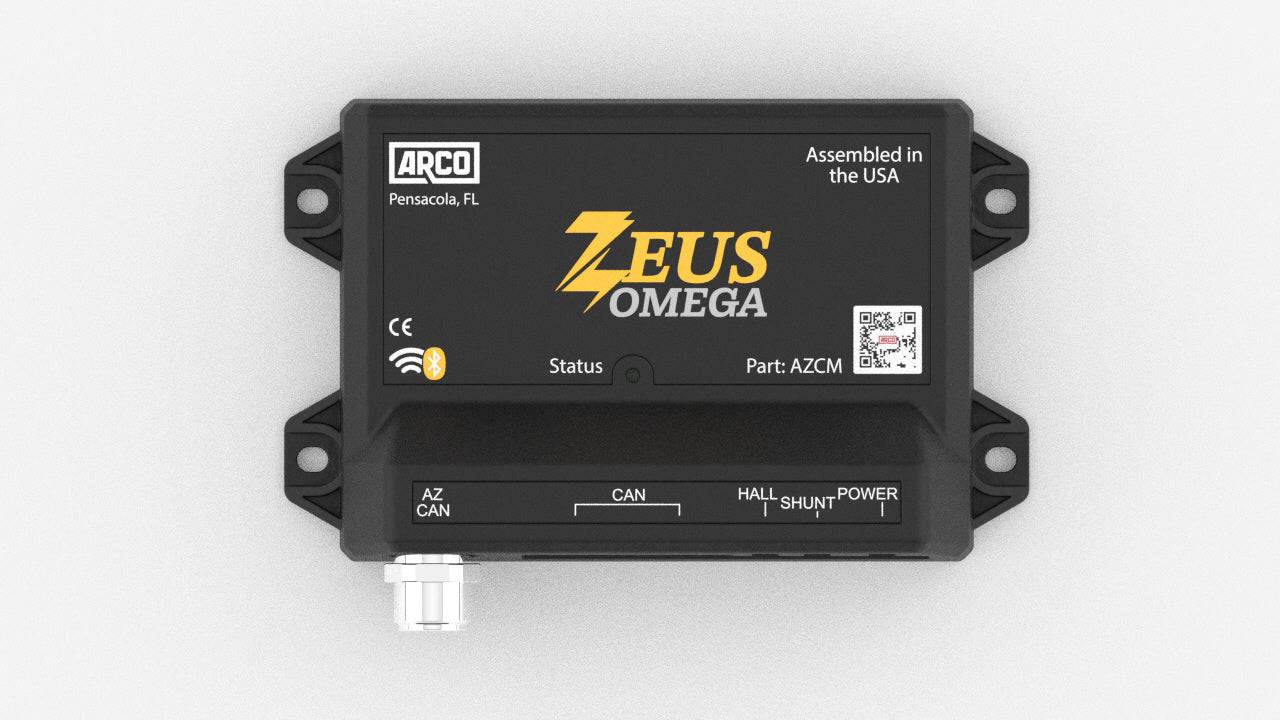

Zeus Omega Control Module - AZCM

Zeus Omega Control Module - AZCM

A complete, pre-terminated kit - Control Module, Alternator Drive Module, cable, fuses, and temperature sensor. Ready to install out of the box.

Price
$599

Limited pre-sale availability. Estimated shipping begins July 31st, 2026. Reserve your kit now to secure inventory from the first production run.

Zeus Omega System — Part No: AZCM
The Brain.
WiFi. Bluetooth.
Full Control.
The Zeus Omega Control Module is the intelligence center of the Zeus Omega system. Mounts at the battery. Handles WiFi, Bluetooth, app control, and system intelligence. One cable connects it to each Alternator Drive Module.
WiFi Only in Class
6 Max ADMs
12-48V Multi-Voltage
2-Year Warranty
Zeus Omega Control Module (AZCM)
The Control Component
All the intelligence.
None of the harness.

Traditional alternator regulators demand a multi-wire harness running up to 30 feet to reach the alternator. The Zeus Omega Control Module changes that. It mounts near the battery, connects to the system via WiFi and Bluetooth, and communicates with each Alternator Drive Module over a single AZ CAN Cable. No harness. No long wire runs.

Technical Specifications
Compact. Connected.
Built to run the show.

The Control Module is compact enough to mount anywhere near the battery — 4 × 3 × 1 inches, 3 oz. It handles all system intelligence: WiFi and Bluetooth connectivity, app communication, charging profiles, engine profiles, and diagnostics. The ADMs do the work at the alternator. The Control Module tells them exactly what to do.

Available individually for replacement or as part of the complete Zeus Omega Alternator Control System kit.

Waterproof Rating

IP20

Heat Tolerance

80°C (176°F)

Dimensions

100 × 75 × 25mm (4 × 3 × 1 in)

Weight

3 oz (85 g)

Connectivity

WiFi + Bluetooth Native

Part Number

AZCM

Zeus Omega Control Module side view
WiFi Only in Class
Up to 6 ADMs Supported
12-48V Multi-Voltage
2-Year Warranty
How It Connects
One controller. One cable per alternator.
That is the whole system.
Zeus Omega Control Module
Control Module
You are here · AZCM
5M / 16ft AZ CAN Cable
One per ADM
Zeus Omega Alternator Drive Module
Alternator Drive Module
At the alternator · AZADM
Short local
connection
Alternator with Zeus Omega ADM installed
Your Alternator
Add more, add one ADM + cable each

1 Control Module · 1 cable per alternator · Up to 6 ADMs

What the CM Does
The only alternator controller
with native WiFi.

WiFi + AZ Cloud*

The only alternator control system with native WiFi. AZ Cloud remote data visualization coming Fall 2026.

Bluetooth App Control

iOS and Android app with CarPlay and Android Auto support. Configure, monitor, and diagnose your system from anywhere within range.

Controls Up to 6 ADMs*

One Control Module manages up to 6 Alternator Drive Modules. Add an alternator, add an ADM, add a cable.

Multi-Voltage

12V, 24V, 36V, and 48V system support. Compatible with Victron DVCC, NMEA 2000, RV-C, CZone, and Smart BMS.

Device Settings History

Records a lifetime log of every configuration change — full visibility into how the system has been set up and modified over time.

2-Year Warranty

The Control Module is covered for two years. Assembled in the USA at ARCO Marine's Pensacola, FL facility.

Zeus Omega App
A New Level of Control.

The Zeus Omega app is the interface to the Control Module. Configure charging profiles, monitor real-time system data, run diagnostics, and manage multiple ADMs — all from your phone. Built-in protection warns against unsafe or incompatible configurations before they cause problems.

Coming Fall 2026
AZ Cloud Remote Data Visualization
AZ Cloud will allow users to remotely view system data, expanding visibility beyond local Bluetooth and app access.
Intuitive Real-Time Data Visualization
Easy-to-understand view of battery and alternator data for quick system performance monitoring.
Charging State Descriptions & Troubleshooting
Clearly explains current charging logic, system state, and potential issues to help users resolve problems.
Support for Up to 6 ADMs
Configure systems with multiple Alternator Drive Modules for advanced multi-alternator charging setups.
Individual ADM Configuration
Configure each ADM independently for systems with different alternator sizes, engine setups, or operating requirements.
Up to Two Configurable Engine Profiles
Create and configure up to two engine profiles with RPM-based limits, assignable to individual ADMs.
User-Selectable Alternator Rotor Voltage
Define the rotor voltage and Zeus Omega automatically calculates the maximum allowable field/duty cycle to protect your alternator.
Configuration Warnings & Protection
The app guides users through setup by warning against potentially unsafe or incompatible configurations.
Device Settings History
Records a lifetime log of configuration changes, giving you full visibility into how the system has been set up and modified over time.
Part of the Zeus Omega System
The Control Module works with the Zeus Omega ADM.

The Control Module is the brain. The Alternator Drive Module is the muscle. Together, they are the Zeus Omega Alternator Control System — the first alternator control system engineered around a single cable connection between controller and drive.

If you are building a new Zeus Omega installation from scratch, the complete kit (AZOMEGA) includes the Control Module, ADM, AZ CAN Cable, power connection, fuses, and temperature sensor — everything pre-terminated and ready to install.

Replacing a Control Module?
Order the AZCM individually. Your existing ADMs, cables, and accessories are fully compatible.
New to Zeus Omega?
Start with the complete Zeus Omega Alternator Control System kit — it includes everything needed for a single-alternator installation.
Adding More Alternators?
Your existing Control Module supports up to 6 ADMs. Add one ADM per alternator — no new controller needed.
Shop the Full Zeus Omega Kit
Zeus Omega Control Module and Alternator Drive Module
Zeus Omega Hall Effect Sensor for Control Module (AZHSCM)
Optional Accessory
Add Hall Effect Current Sensing at the Control Module.

The Zeus Omega Hall Effect Sensor for the Control Module (AZHSCM) provides direct battery or alternator current sensing at the CM — non-contact measurement that removes the complexity of installing and calibrating a traditional shunt.

Faster commissioning, more accurate state-of-charge monitoring, and enhanced system diagnostics. No shunt installation. No calibration complexity.

For the Control Module

Part No: AZHSCM

For the ADM

Part No: AZHSADM

Made in Pensacola, FL
PCBAs Manufactured In-House.
Assembled in the USA.

Every Zeus Omega PCBA — including the Control Module — is manufactured at ARCO Marine's facility in Pensacola, Florida using in-house SMT equipment and firmware developed entirely by our engineering team. No outsourced boards. No overseas firmware. End-to-end ownership of every component.

In-House PCBA Manufacturing
In-House Firmware Development
Est. 1960 Pensacola, Florida
Questions
Frequently Asked
What is the Zeus Omega Control Module? The Zeus Omega Control Module (AZCM) is the intelligence center of the Zeus Omega Alternator Control System. It mounts near the battery, handles WiFi and Bluetooth connectivity, runs the Zeus Omega app interface, and communicates with each Alternator Drive Module over the AZ CAN network. Available individually for replacement or as part of the complete Zeus Omega kit.
Do I need the full kit or just the Control Module? If you are replacing a Control Module in an existing Zeus Omega system, the AZCM is available individually. If you are building a new installation from scratch, the complete Zeus Omega Alternator Control System kit (AZOMEGA) includes the Control Module, ADM, AZ CAN Cable, power connection, fuses, and temperature sensor — everything pre-terminated and ready to install.
How many ADMs can one Control Module support? One Zeus Omega Control Module supports up to 6 Alternator Drive Modules over the AZ CAN communication network. Each ADM connects via its own AZ CAN Cable. Add an alternator, add an ADM, add a cable — no new controller needed.
What is WiFi used for on the Control Module? The Control Module is the only alternator controller in its class with native WiFi. WiFi enables AZ Cloud connectivity — coming Fall 2026 — which will allow users to remotely view system data beyond local Bluetooth range. Bluetooth is used for local app communication, configuration, and diagnostics via the Zeus Omega iOS and Android app.
What battery integrations does it support? The Zeus Omega Control Module is compatible with Victron DVCC, NMEA 2000, RV-C, CZone, and Smart BMS battery integrations — supporting a wide range of marine, RV, and specialty vehicle electrical systems.
What voltage systems does it support? The Control Module supports 12V, 24V, 36V, and 48V system configurations. System voltage is configured through the Zeus Omega app during setup.
What is the warranty on the Control Module? The Zeus Omega Control Module carries a 2-year warranty. It is assembled in the USA at ARCO Marine's facility in Pensacola, Florida, with PCBAs manufactured in-house using ARCO's own SMT equipment and firmware.
Where can I get installation support? Contact the ARCO Marine team directly at sales@arcomarine.com or 1-800-722-2720 for compatibility questions and installation guidance. Professional installation is recommended for high-output alternator systems.
ARCO Marine
Questions about the
Zeus Omega Control Module?

Contact the ARCO Marine team to confirm compatibility, discuss your installation, or place an order.

* Patent Pending
