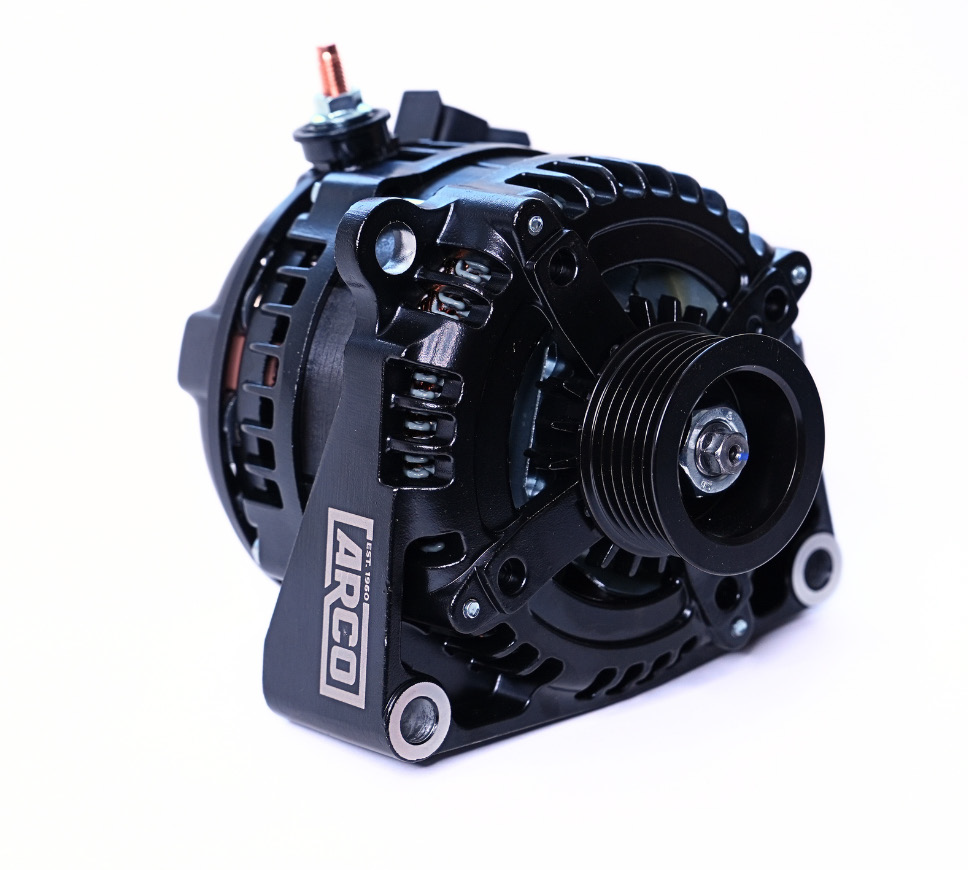

ARCO A175/2500W-12V High Output Alternator for Wake Boats

Price
$569
Housing:
Regulation:
Ground Type:
Description

Engineered for the Electrical Demands
of Modern Wake Boats.

  • Monitors true battery voltage for faster,
    more efficient charging
  • Delivers stable power for stereos, ballast
    pumps, thrusters, and other high draw loads
  • Maintains battery charge under heavy
    electrical demand
  • Provides more than enough power for
    digital dash & touchscreen helm displays
  • Excellent output at idle
  • Proudly assembled in the U.S.A.
Technical Specifications

Voltage 12V
Regulator Target Voltage 14.2V with direct battery sensing
Weight 12 lb (5.44 kg)
Regulation Internal
Cut-In RPM 1,475 Alternator RPM
Maximum Alt RPM 16,000
Battery Post Side Exit
Standard Pulley K6 (6-groove, 53mm)
Diodes 50A, Avalanche
Max Output (Cold) 181 Amps
Sustained Cruising Output (Hot, 6,000 RPM) 137 Amps
Sustained Idle Output (Hot, 2,500 RPM) 84 Amps
Max Continuous Operating Temperature 100°C

Regulation

Internal: Internally regulated

Transparency - How We Test For Output

To measure sustained output, the alternator is run at 3,000 RPMs for 60 minutes with a plexiglass shield covering the units. Testing shows that after 60 minutes in these conditions, alternators reach their maximum operating temperature, or the conditions under which the unit will produce the least output.

It is under these harsh conditions where we measure the “hot” output of the units at various RPMs. The complete power curve is shown above.

Note: The “hot” conditions are much less favorable than the conditions typically used in the industry. The temperature of the stator during our “hot” test was 305 °F. Incumbents measure the power curve at an ambient temperature of 140 °F. “Cold” testing was done at 71° F.

Cross-Reference

Unit Part #s Superceeded Part Number Voltage Size Housing Regulation Pulley APS Mechman Balmar
4042 A275L-12-VT-IE-49K6 12V Large (138mm) Vortec Internal 53K6 360H15RVC1H652S9C M8206250 XT-VT-250-K6

SKU Details

Voltage Maximum
Output (Amps)
Sustained Idle
Output (Amps)
Housing Regulation Pulley Unit Part #
12V 311 198 Vortec (GM) External Only 49mm K6 4033
12V 311 198 Vortec (GM) Internal or External 49mm K6 4034
12V 311 198 Ford Transit External Only 62mm K6 4032
12V 311 198 Ford Transit External Only 49mm K6 4031
12V 311 198 1"-2" Single Foot External Only 49mm K6 4027
12V 311 198 1"-2" Single Foot Internal or External 49mm K6 4029
12V 311 198 1"-2" Single Foot – Isolated Ground External Only 49mm K6 4030
12V 311 198 N62 External Only 50mm K6 OAP 4026
12V 311 198 3.15" J180 External Only 49mm K6 4020
12V 311 198 3.15" J180 – Common Rail – Isolated Ground External Only 49mm K6 4021
12V 311 198 3.15" J180 – Isolated Ground External Only 49mm K6 4019
12V 311 198 4" J180 External Only 49mm K6 4022
12V 311 198 4" J180 Internal or External 49mm K6 4024
12V 311 198 4" J180 – Isolated Ground External Only 49mm K6 4023
12V 311 198 4" J180 – Isolated Ground Internal or External 49mm K6 4025
